Radio Bikes SOLAR PRO FRAMES

Nov 17, 2020

Written by Bart de Jong

Read 3285 times

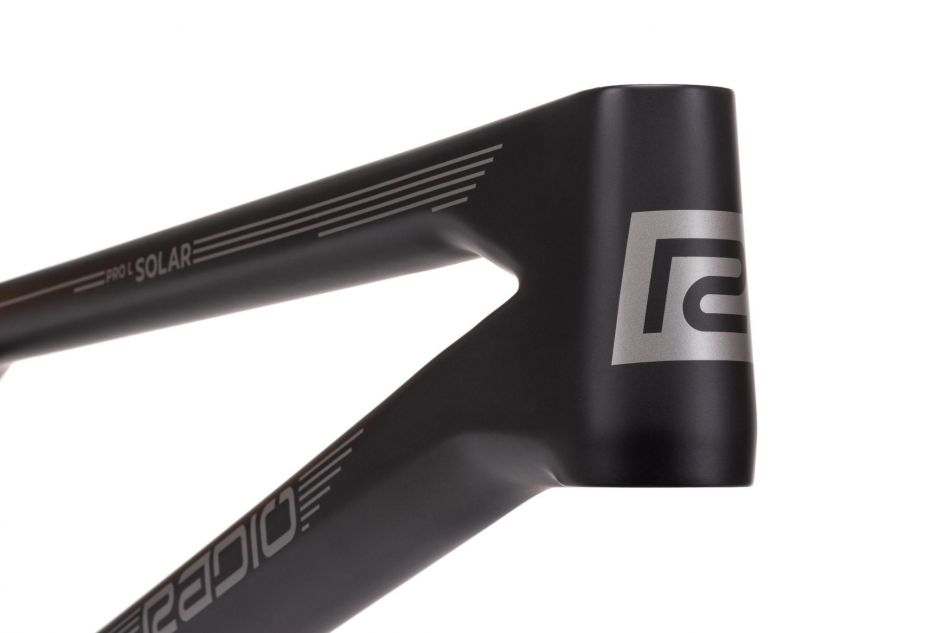

The wait is over! Radio's highly anticipated solar Carbon Fiber frame is here… designed and developed in Cologne, Germany over a two-year period, the solar is manufactured from the highest quality Torayca carbon and is incredibly unique with its 100% monocoque 1pc construction. By using a mono-construction compared to a 2/3pc construction which most other brands use, we were able to make the frame even stiffer and stronger and create no weak or fatigue points.

The solar frame is laboratory tested and proven to be insanely stiff and lightweight especially under high impact and stress tests. The internal cable routing allows for a super clean and stealthy setup. Tested by the Radio Raceline team the past x2 seasons and now the frame of choice for many of today’s top

riders, we could not be prouder of what we have created with the Solar Frame.

SOLAR PRO L FRAME:

Material: High performance TORAYCA carbon fiber
Top Tube Length (actual) 20.75” (527mm)
Top Tube Length (effective) TBA
Chainstay Length (min.) 14.25” (362mm)
Dropout Size 15mm
Head Tube Angle 74.5°
Seat Tube Angle 71°
Head Tube Size (full int.) tapered 1-1/8” – 1.5” (120mm)
Seat Post Size 27.2mm
Seat Tube Length 238mm
Bottom Bracket Type Euro, threaded, BSA 68mm
Bottom Bracket Height 11.6″ (EU)
Wheel Size 20″ x 1.75″
Rider Area TBA

Extras
• full monocoque technology
• internal cable routing
• laboratory tested for superior strength and stiffness

Colour: MATT BLACK

Weight 1.160kg/2.56lbs

SOLAR PRO XL FRAME:

Material high-performance TORAYCA carbon fiber
Top Tube Length (actual) 21.25” (540mm)
Top Tube Length (effective) 22.5” (571mm)
Chainstay Length (min.) 14.5” (368mm)
Dropout Size 15mm
Head Tube Angle 74.5°
Seat Tube Angle 71°
Head Tube Size (full int.) tapered 1-1/8” – 1.5” (120mm)
Seat Post Size 27.2mm
Seat Tube Length 238mm
Bottom Bracket Type Euro, threaded, BSA 68mm
Bottom Bracket Height 11.6″ (EU)
Wheel Size 20″ x 1.75″
Rider Area TBA
Extras Inc. • full monocoque technology
• internal cable routing
• laboratory tested for superior strength and
stiffness

Weight 1.165kg/2.57lbs

SOLAR PRO XXL FRAME

Material high-performance TORAYCA carbon fiber
Top Tube Length (actual) 21.75” (553mm)
Top Tube Length (effective) 22.9” (584mm)
Chainstay Length (min.) 14.5” (368mm)
Dropout Size 15mm
Head Tube Angle 74.5°
Seat Tube Angle 71°
Head Tube Size (full int.) tapered 1-1/8” – 1.5” (120mm)
Seat Post Size 27.2mm
Seat Tube Length 238mm
Bottom Bracket Type Euro, threaded, BSA 68mm
Bottom Bracket Height 11.6″ (EU)
Wheel Size 20″ x 1.75″

Rider Area 540.7mm
Extras Inc.
• full monocoque technology
• internal cable routing
• laboratory tested for superior strength and
stiffness

Weight 1.210kg/2.66lbs

More info: Radio Bikes
